Lamborghini Ambient Lighting and Starlight Headliners: The Ultimate Interior Upgrade Guide

Lamborghini cockpits are engineered for raw performance, angular aesthetics, and driver focus. Models like the Huracán, Aventador, Revuelto, and Urus present an aggressive, jet-fighter-inspired layout. However, factory cabin illumination often remains minimalist, functional, or confined to subtle footwell accents.

Custom ambient lighting and starlight headliner installations transform a factory supercar cabin into a bespoke, immersive environment. Integrating fiber optics and precision micro-LEDs into an exotic platform requires specialized knowledge of high-end vehicle architecture, CAN-bus electrical systems, lightweight compound headliners, and heat dissipation.

This guide outlines technical considerations, installation methodologies, material preservation protocols, and customization options for retrofitting custom illumination into modern Lamborghini models.

Key Takeaways

Core Insight	Technical & Operational Impact
CAN-Bus Network Isolation	Direct hardwiring into factory harnesses risks CAN-bus errors and warranty issues. Installations require fused power taps, isolated relays, or OEM-style integration modules.
Composite & Alcantara Care	Removing carbon fiber trim panels or Alcantara headliners requires climate-controlled handling, non-marring nylon tools, and model-specific clip replacement to prevent sagging or cosmetic creasing.
Fiber Density & Weight Management	High-end starlight installations utilize between 400 and 1,200 optical fibers. Light engines must be strategically positioned to allow thermal dissipation without altering cabin noise or spatial headroom.
OEM-Style Control Interfaces	Custom lighting systems can be governed via physical stealth switches, integrated smartphone applications, or direct OEM infotainment integration depending on the vehicle platform.

Understanding Custom Illumination Technologies for Supercars

Custom interior lighting for exotic vehicles falls into two distinct categories: dynamic multi-zone fiber-optic ambient lighting and fiber-optic starlight headliner systems.

       ┌──────────────────────────────────────────────────────────┐
       │             LAMBORGHINI CABIN LIGHTING SYSTEM            │
       └────────────────────────────┬─────────────────────────────┘
                                    │
           ┌────────────────────────┴────────────────────────┐
           ▼                                                 ▼
┌─────────────────────┐                           ┌─────────────────────┐
│  AMBIENT LIGHTING   │                           │ STARLIGHT HEADLINER │
└──────────┬──────────┘                           └──────────┬──────────┘
           │                                                 │
 ┌─────────┴─────────┐                             ┌─────────┴─────────┐
 ▼                   ▼                             ▼                   ▼
Acrylic Fiber     OEM-Integrated                Micro-Optical       Shooting Star
Optic Strips      LED Modules                   Fiber Matrix        Effects Modules
 (Doors/Console)   (Footwells)                 (400–1200 Strands)    (Secondary Engine)

Fiber-Optic & Acrylic Ambient Strips

Modern aftermarket ambient lighting uses rigid or flexible acrylic light pipes illuminated by remote RGBW (Red, Green, Blue, Warm White) LED engines.

Uniformity: Unlike older neon or EL wire (electroluminescent wire) systems, acrylic optical fibers maintain edge-to-edge color consistency and uniform illumination along extended runs.
Heat Management: Light is transmitted from a central engine module located away from sensitive trim, ensuring zero heat generation along the exposed door cards or dashboard edges.
Diffused Optics: Matte or frosted optical diffusion casings eliminate harsh spots, mimicking the factory lighting profiles found in modern luxury GT vehicles.

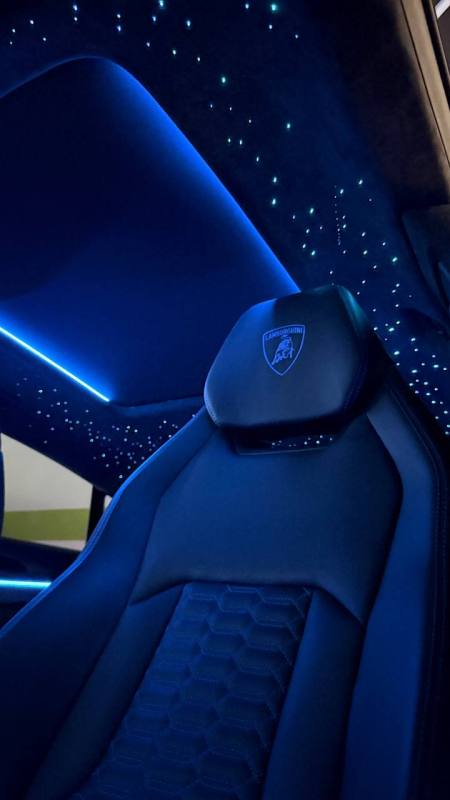

Fiber-Optic Starlight Headliners

Starlight installations utilize hundreds of flexible plastic optical fiber (POF) strands threaded through the vehicle’s original Alcantara or leather headliner.

Strand Diametering: Varying strand diameters ($0.75\text{ mm}$, $1.0\text{ mm}$, and $1.5\text{ mm}$) creates realistic depth, replicating constellations with variable star magnitudes.
RGBW Light Generators: High-output micro-LED illuminators drive the fibers. Adding dedicated white chips (RGBW) produces true neutral whites rather than the harsh bluish tints of basic RGB color mixing.
Twinkle & Shooting Star Effects: Internal scintillation wheels inside the light engine physically interrupt light paths to create natural twinkling. Secondary LED sequencing channels drive line-array fibers to generate meteor or shooting-star animations across the roofline.

Technical Challenges Specific to Lamborghini Models

Retrofitting luxury electronics into Lamborghini architectures demands strict precision due to vehicle geometry and sensitive electronics.

┌─────────────────────────────────────────────────────────────────────────┐

│                      VEHICLE ARCHITECTURE CONSIDERATIONS                │

├────────────────────────────┬────────────────────────────────────────────┤

│ Huracán / Aventador        │ Rigid roof panel structure; tight space     │

│                            │ constraints behind trim panels.            │

├────────────────────────────┼────────────────────────────────────────────┤

│ Urus SUV                   │ Multi-panel Alcantara headliner; optional  │

│                            │ panoramic sunroof shade integration.       │

├────────────────────────────┼────────────────────────────────────────────┤

│ Revuelto / Hybrid Platforms│ High-voltage system proximity; isolated    │

│                            │ 12V auxiliary circuit requirements.         │

└────────────────────────────┴────────────────────────────────────────────┘

Headliner Removal and Alcantara Integrity

Modern Lamborghinis extensively utilize Alcantara and forged carbon fiber. Alcantara is sensitive to tension, moisture, and oil transfer. Removing the headliner requires removing A-, B-, and C-pillar covers, sun visors, center consoles, and overhead control modules without stretching the textile backing or snapping delicate tension clips.

Sunroof & Panoramic Roof Constraints (Urus)

For Lamborghini Urus models equipped with panoramic glass roofs, starlight fibers must be routed exclusively through the moveable fabric sunroof shade or framing perimeter. Installing fibers into a rolling shade requires ultra-flexible fiber strain reliefs and dedicated mechanical track guides to prevent fiber binding or snapping when opening and closing the assembly.

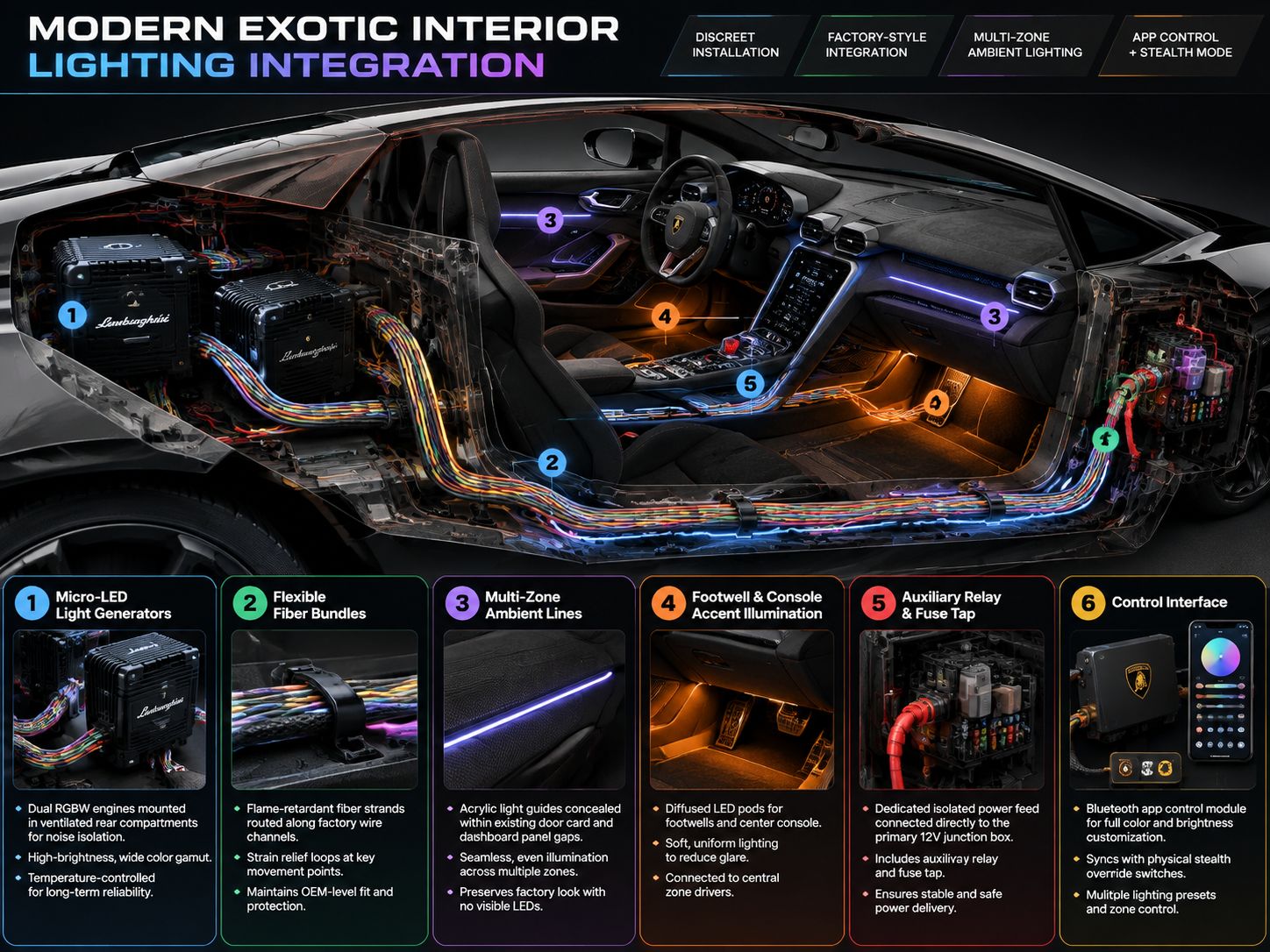

Electrical System Integration & Power Management

Exotic sports cars feature precise battery management and CAN-bus monitoring. Tapping directly into factory lighting wires can trigger dash errors, bulb-out warnings, or parasitic battery drain.

Power Sourcing: Installations must draw main power directly from dedicated, fused auxiliary circuits in the 12V fuse panel using key-switched ignition relays.
Grounding: High-performance composite chassis components require dedicated ground distribution blocks tied directly to primary chassis ground points rather than structural carbon panels.

Step-by-Step Installation Process

Installing custom interior lighting in an exotic vehicle follows a multi-phase structural workflow to preserve factory integrity.

┌─────────────────────────────────────────────────────────────────┐

│                   EXOTIC LIGHTING INSTALLATION WORKFLOW          │

└────────────────────────────────┬────────────────────────────────┘

│

┌───────────────────────────────┼───────────────────────────────┐

│                               │                               │

▼                               ▼                               ▼

Phase 1: Disassembly &      Phase 2: Matrix Mapping &      Phase 3: Testing &

Vehicle Protection         Fiber Penetration              Integration

(Covers & Clip Pulling)    (Perforation & Epoxying)       (CAN-Bus & Bench Test)

1.Vehicle Protection & Interior Disassembly:3–5 Hours.

Protective film and covers are applied to leather surfaces, carbon fiber trim, paintwork, and door sills. Non-marring tools are used to release factory trim clips, disconnect overhead consoles, and lower the headliner assembly through the passenger door or rear tailgate.

2.Starlight Pattern Design & Fiber Threading:8–12 Hours.

The headliner is placed on a clean prep station. Technicians plot constellation maps or custom geometric patterns onto the reverse side. Precision perforations are pierced through the backing layer. Optical fibers ($0.75\text{ mm}$ to $1.5\text{ mm}$) are hand-threaded through each point, secured on the back using heat-resistant automotive epoxy, and allowed to cure fully.

3.Ambient Light Strip Fabrication & Placement:4–6 Hours.

Custom fiber or acrylic light channels are trimmed and fitted along factory panel gaps in the door panels, dashboard seams, and center console sides. Modules are set into place using flush-mounting techniques to ensure lines look factory-integrated when powered off.

4.Electrical Wiring & Light Engine Placement:3–4 Hours.

Wiring looms are wrapped in anti-rattling cloth tape and routed along existing factory harnesses. Light engines are mounted in ventilated, accessible areas (such as behind rear trunk trim panels or kick spaces) to ensure silent operation and thermal venting.

5.Trim Cutting, Reassembly, & Calibration:3–5 Hours.

Protruding optical fibers on the headliner face are carefully flush-cut and trimmed using hot micro-shears, leaving smooth star nodes flush with the Alcantara surface. The cabin is reassembled, diagnostic scans are performed to confirm zero electrical fault codes, and lighting modes are calibrated via remote/app controls.

DIY vs. Professional Exotic Installation

While off-the-shelf LED kits are available online, installing aftermarket lighting into a Lamborghini carries distinct technical risks compared to standard production vehicles.

┌─────────────────────────┬──────────────────────────┬──────────────────────────┐

│ EVALUATION FACTOR       │ DIY APPROACH             │ PROFESSIONAL FACILITY    │

├─────────────────────────┼──────────────────────────┼──────────────────────────┤

│ Vehicle Safety          │ Risk of trim damage,     │ Non-marring tools,       │

│                         │ snapped clips, airbag    │ OEM clip replacements,   │

│                         │ obstruction│ factory procedures       │

├─────────────────────────┼──────────────────────────┼──────────────────────────┤

│ Electrical Safety       │ Voltage spikes, battery  │ Fused isolators, relay   │

│                         │ drain, CAN-bus errors    │ harnesses, zero drain    │

├─────────────────────────┼──────────────────────────┼──────────────────────────┤

│ Material Handling       │ Risk of creasing or      │ Climate-controlled bench │

│                         │ staining Alcantara       │ handling, full warranty  │

├─────────────────────────┼──────────────────────────┼──────────────────────────┤

│ Finish & Longevity      │ Exposed wires, uneven    │ Stealth wiring, flush    │

│                         │ fiber cuts, noise leaks  │ node cuts, quiet cooling │

└─────────────────────────┴──────────────────────────┴──────────────────────────┘

Evaluating Quality: Standard vs. Bespoke Starlight Systems

Not all starlight headliners deliver the same visual quality. Selecting high-grade components determines whether the final result looks like a luxury factory option or an unrefined modification.

┌────────────────────────────────────────────────────────────────────────┐

│                        STARLIGHT QUALITY COMPARISON                    │

├───────────────────────────┬────────────────────────────────────────────┤

│ Entry-Level Kits          │ High-End Bespoke Systems                   │

├───────────────────────────┼────────────────────────────────────────────┤

│ Single-diameter strands   │ Multi-diameter strands (0.75mm – 1.5mm)    │

│ (flat appearance)         │ (realistic star-magnitude depth)           │

├───────────────────────────┼────────────────────────────────────────────┤

│ RGB-only light engines    │ RGBW engines with dedicated warm/cool      │

│ (muddy white shades)      │ white LEDs for natural starlight           │

├───────────────────────────┼────────────────────────────────────────────┤

│ Loud cooling fans         │ Convection or ultra-quiet mag-lev fans     │

├───────────────────────────┼────────────────────────────────────────────┤

│ Visible fiber stubs       │ Flush-trimmed micro-finished end-points    │

└───────────────────────────┴────────────────────────────────────────────┘

Frequently Asked Questions

Will installing custom ambient lighting or a starlight headliner void my Lamborghini warranty?

In the United States, under the Magnuson-Moss Warranty Act, aftermarket modifications cannot automatically invalidate a vehicle warranty unless the dealer proves the modification directly caused a specific failure. Professional installers protect factory warranties by using independent, fused power harnesses tied into auxiliary circuits rather than splicing or cutting primary factory wiring looms.

How many starlight strands are recommended for a Lamborghini cabin?

Optimal density depends on cabin size and vehicle model:

Huracán / Aventador / Revuelto: 400 to 600 fibers provide an authentic, balanced night-sky density across two-seater rooflines.
Urus SUV: 800 to 1,200 fibers are recommended to cover the larger roof panel area without sparse patches.

Do starlight fibers break when the headliner flexes?

High-grade Plastic Optical Fiber (POF) made from polymethyl methacrylate (PMMA) is extremely flexible and durable. However, proper routing requires gentle bend radii during installation. Sharp 90-degree kinks must be avoided to prevent micro-fractures inside the core that reduce light transmission.

How are the ambient lights and starlight headliner controlled?

Modern bespoke lighting controllers offer multiple operation methods:

Smartphone App (iOS/Android): Allows individual control of colors, brightness, twinkle speed, and dynamic color-chasing modes.
RF Handheld Remote: Offers quick access to preset colors, dimming, and power functions.
OEM-Style Switches: Discrete physical buttons integrated into factory dash panels or center storage consoles for a factory look.

How long does a professional ambient lighting and starlight installation take?

A full starlight and ambient lighting installation on an exotic vehicle typically takes 2 to 4 business days. This timeline ensures careful cabin disassembly, fiber threading, overnight adhesive curing, electrical safety testing, and interior detailing.
