Achieving deep, tight, and impact-driven bass in a vehicle requires far more than dropping a woofer box into the trunk and running a power cable to the battery. Many aftermarket installations fail to deliver their full acoustic potential—or suffer premature component failure—because of critical mismatches between enclosure acoustics, electrical current capacity, voice coil wiring, and gain calibration.
A car subwoofer system operates as an integrated electromechanical system. Every stage of the signal chain directly influences total sound quality and system durability, from total air displacement inside the enclosure to current draw from the vehicle alternator. This guide explains the core technical principles behind car subwoofer installation, breaks down key equipment matching parameters, and outlines precision tuning steps to help you build a reliable, high-performance bass response in your vehicle.
Key Takeaways
| Core Insight | Practical Impact |
|---|---|
| Enclosure Volume Dictates Bass Response | Sealed boxes provide flat acoustic response and tight transient speed, while ported enclosures offer up to +3dB output near the port tuning frequency at the cost of larger space requirements. |
| RMS Power Beats Peak Ratings | Always match the amplifier’s continuous RMS output at your target impedance load to the subwoofer’s combined RMS power handling, ignoring peak or dynamic wattage specs. |
| Gain Control Is Not Volume Control | Setting amplifier gain matches input sensitivity to the head unit signal level; incorrect gain setting induces clipping, leading to thermal voice coil destruction. |
| OFC Power Cable Prevents Voltage Drops | Oxygen-Free Copper (OFC) power wiring handles up to 30–40% higher current loads than Copper-Clad Aluminum (CCA) of the same gauge, preventing amp clipping under high output. |
Selecting the Right Subwoofer Enclosure Type
The physical box housing your subwoofer acts as an acoustic filter that controls cone movement, power handling, and frequency response. Installing the same subwoofer driver in two different box designs yields radically different acoustic performance.
Sealed Enclosures (Acoustic Suspension)
Sealed boxes isolate the wave produced by the back of the cone from the front wave. The air trapped inside acts as a pneumatic spring, dampening cone movement.
- Acoustic Signature: Tight, fast transient response with flat frequency response and smooth low-end roll-off (6 dB/octave).
- Space Efficiency: Compact footprint compared to ported designs.
- Best Uses: Jazz, rock, acoustic music, and critical listening applications prioritizing accuracy over raw volume.
Ported Enclosures (Vented / Bass-Reflex)
Ported boxes use a tuned vent or port to redirect sound waves from the rear of the woofer cone, reinforcing front-wave output near the port tuning frequency.
- Acoustic Signature: High efficiency with noticeable output gains (3 dB to 4 dB increase) in the lower bass register (30 Hz–50 Hz).
- Sizing Requirements: Larger internal volume needed compared to sealed boxes. Below the port tuning frequency, the air cushion collapses, causing free-air unloading.
- Best Uses: Hip-hop, electronic dance music, and listeners seeking maximal output without increasing amplifier wattage.
Bandpass Enclosures
Bandpass designs place the subwoofer driver between two chambers—typically a sealed rear chamber and a ported front chamber.
- Acoustic Signature: Highly aggressive output within a narrow frequency band, with steep acoustic attenuation outside that passband.
- Trade-Offs: Complex design criteria; improper tuning results in boomy sound and high risk of hidden driver distortion.
Power Matching and Electrical Infrastructure
A common point of failure in car audio installation stems from inadequate power distribution and improper component matching. Understanding electrical draw ensures clean signal delivery without straining your vehicle’s charging system.
+-------------------+ OFC Power Wire (Fused) +--------------------+
| Vehicle Battery |==================================>| Mono Subwoofer Amp |
+-------------------+ +--------------------+
| |
Engine Ground Speaker Output
| |
+---------------+ +-------------------+
| Chassis Frame |<===================================| Subwoofer System |
+---------------+ Short OFC Ground Wire +-------------------+
RMS Power vs. Peak Power
Always ignore peak, max, or dynamic power ratings printed on product boxes. Continuous RMS (Root Mean Square) power dictates what components can safely produce and thermal-manage over long listening sessions.
- Rule of Thumb: Match the amplifier’s RMS output at your intended impedance load to 75%–100% of the total combined continuous RMS capacity of your subwoofers.
Subwoofer Impedance & Wiring Calculations
Subwoofers come in Single Voice Coil (SVC) or Dual Voice Coil (DVC) configurations, rated at 1-ohm, 2-ohm, or 4-ohm nominal impedance.
- Parallel Wiring: Connects positive to positive and negative to negative. This divides overall impedance, allowing the mono amplifier to output higher current.Final Impedance (Equal Coils) = Coil Resistance / Number of Coils
- Series Wiring: Connects positive terminals to negative terminals in a daisy-chain. This adds resistances together, raising load impedance and reducing current output while keeping the amplifier running cooler.
Example: Connecting two 4-ohm DVC subwoofers with coils in parallel yields a 1-ohm final load—ideal for high-efficiency, 1-ohm stable class-D mono block amplifiers.
Oxygen-Free Copper (OFC) vs. Copper-Clad Aluminum (CCA)
Always choose 100% Oxygen-Free Copper power and ground wiring kits over Copper-Clad Aluminum. CCA uses aluminum strands plated with a thin copper layer; it exhibits higher internal resistance, creates greater heat under load, and degrades faster in automotive environments.
| Power System Draw (RMS) | Recommended Wire Gauge (OFC) | Fuse Size |
|---|---|---|
| Up to 500 Watts | 8 AWG | 50A–60A |
| 500W – 1000 Watts | 4 AWG | 80A–100A |
| 1000W – 2000 Watts | 1/0 AWG | 150A–200A |
Note: Systems drawing over 1,000 Watts RMS require upgraded chassis ground straps (“The Big 3 Upgrade”) and high-output alternators to maintain voltage stability above 13.8V under heavy low-frequency output.

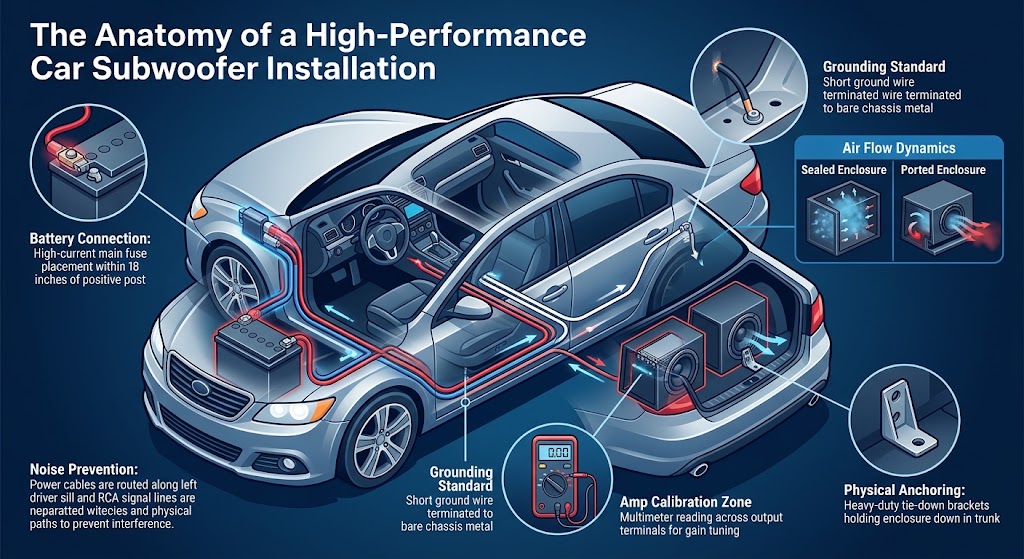

Step-by-Step Subwoofer System Installation
Installing a subwoofer system safely requires systematic wire routing, solid chassis grounding, and air-tight box connections.
Step 1: Battery Disconnection & Power Cable Routing
Disconnect the negative terminal of your car battery before working on any electrical connections. Route the main power wire from the battery through an existing rubber grommet in the firewall. Place the main in-line fuse holder within 18 inches of the battery terminal to protect the vehicle from potential short circuits.
Step 2: Chassis Ground Establishment
Select a clean, unpainted structural metal point on the vehicle body within 3 feet of the amplifier. Sand down paint, primer, and rust down to bare shiny metal. Secure the ground cable using a star washer and ring terminal for low resistance connection.
Step 3: Signal Routing & Remote Turn-On
Run Low-Level RCA cables and the remote turn-on wire down the opposite side of the cabin from the main power wire. Running power and signal cables side-by-side induces unwanted engine noise and alternator whine into the audio system.
Step 4: Enclosure Integration & Driver Mounting
Secure speaker wire inside the box to the internal terminal cup. Mount the subwoofer into the baffle using all factory mounting screw holes. Use a compressed foam gasket around the frame to establish a complete air seal. Ensure the entire enclosure is anchored securely in the trunk or cargo area using straps or brackets to avoid shifting during high G-force maneuvers.
Precision Tuning & Gain Staging
Installing the hardware is only half the process; calibrating crossover points, subsonic filters, and input gains determines sound quality and driver lifespan.
1. Setting Gain with an AC Multimeter
Amplifier gain controls input sensitivity—it is not a volume knob. Follow this voltage-matching method to avoid signal clipping:
- Calculate Target AC Voltage using Ohm’s Law:Target Voltage (V) = √(Amplifier RMS Output (Watts) × Subwoofer Load Impedance (Ohms))
(Example: For 500W RMS into a 2-ohm load: √(500 × 2) = √1000 ≈ 31.62 Volts AC)
- Disconnect the subwoofer wires from the amplifier output terminals.
- Turn all amplifier EQ, bass boost, and DSP features off. Turn gain to minimum.
- Play a 0dB 50Hz sine wave test tone through your head unit set to 75% maximum volume.
- Probe the amplifier speaker terminals with a digital multimeter set to AC Voltage (V~).
- Slowly turn gain clockwise until your target AC voltage reading is displayed on the meter.
2. Crossover Settings (Low-Pass Filter)
Set the Low-Pass Filter (LPF) on your amplifier between 70 Hz and 80 Hz. This blocks high frequencies from playing through the woofer, ensuring lower frequencies seamlessly transition to your full-range cabin speakers.
3. Subsonic Filter Adjustment (Ported Enclosures Only)
Ported enclosures allow woofer cone displacement to increase rapidly below the box tuning frequency, causing physical bottoming-out. Set the subsonic filter to half an octave below the port tuning frequency (typically 25 Hz–28 Hz) to protect the voice coil formers from mechanical damage.
System Diagnostics & Safety Checklist
Use this systematic inspection protocol prior to powering on the system for the first time.
Subwoofer Installation Pre-Power Checklist
├── Electrical Verification
│ ├── Main fuse installed within 18" of battery
│ ├── Chassis ground sanded to bare metal (<0.2 ohms resistance)
│ └── 100% OFC wire used for power & ground connections
├── Speaker & Impedance Verification
│ ├── Multimeter verifies target ohm load across speaker terminals
│ ├── Voice coil wires phased correctly (+ to +, - to -)
│ └── Enclosure baffle fully sealed with no air leaks
└── Audio Calibration
├── Gain calibrated via multimeter or oscilloscope
├── Low-Pass Filter (LPF) engaged at 70–80 Hz
└── Subsonic filter set for ported boxes
Frequently Asked Questions
What is the difference between single voice coil (SVC) and dual voice coil (DVC)?
An SVC subwoofer has one voice coil winding and one set of terminals, giving you one fixed impedance load. A DVC subwoofer features two separate voice coils on the same former, providing two sets of terminals. DVC drivers give you far greater wiring flexibility to configure total system impedance to match your amplifier’s maximum stable output rating.
Will adding a 1000-watt subwoofer drain my car battery or alternator?
A 1,000-watt RMS amplifier draws roughly 80 to 100 amperes at maximum output. While a standard factory battery handles short peaks, running high power continuously on a stock 80A-100A alternator can cause headlights to dim and drop system voltage below 12V. Upgrading ground wiring (“Big 3”) or installing a high-output alternator is strongly recommended for 1,000W+ systems.
Why does my subwoofer sound boomy or distorted at higher volumes?
Boomy or distorted output typically stems from a clipped amplifier signal, incorrect gain settings, or an improperly tuned enclosure. When gain is set too high, the amplifier clips the crests of the audio waveform, delivering flat-line DC current to the voice coil. This creates harsh mechanical distortion and rapidly overheats the woofer.
Can I install a car subwoofer without changing my factory head unit?
Yes, you can integrate subwoofers with factory radios using a Line Output Converter (LOC) or a digital signal processor (DSP) with high-level inputs. The LOC taps into existing factory speaker wires and converts the high-voltage speaker signal into a low-voltage RCA signal suitable for aftermarket amplifier inputs.
Conclusion
Building a high-performance car subwoofer system requires balancing acoustic design, electrical headroom, and careful tuning. By selecting the enclosure that matches your listening preferences, wiring your subwoofers to a safe impedance load, running pure OFC power cables, and setting gain using precise voltage measurements, you achieve clean, impactful bass while protecting your hardware investment.
For car audio enthusiasts in Southern California looking for custom enclosure fabrication, precision DSP tuning, and flawless integration, consult the expert team at Sorena Car Audio in Irvine, CA for professional installation assistance.
This guide was prepared using trusted industry standards and reviewed for technical accuracy, electrical safety, and practical installation utility.
